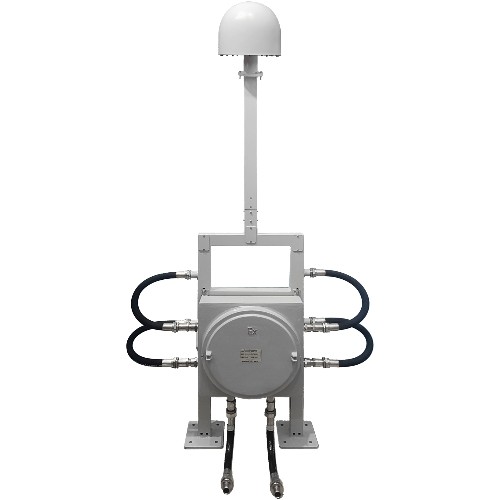

This Drone Detection & Navigation Spoofing Defense System neutralizes security threats from non-compliant UAVs. By emitting regenerative navigation satellite signals at ≤10dBm power, it intercepts and controls drones reliant on navigation systems for flight control. This prevents unauthorized entry into protected airspace, ensuring reliable low-altitude security through signal deception.

Operating Mode: Digital Decoding and Analysis
Detection Direction: Omni-directional
Detection Range: 800 meters
Detection Frequency Bands: 2400-2485MHz, 5600-5900MHz, 1000-1500MHz
Decoding Types: OFDM, FM, WIFI
Detection Time: ≤1.3 seconds
False Alarm Rate: ≤5%
Operating Temperature: -35°C to +60°C
Protection Level: IP65
Source Equipment Parameters:
Effective Range: 500m to 1000m (adjustable)
Signal Transmission Power: ≤10dBm
Supported Navigation Modes: Civilian navigation frequency bands,
Continuous Operating Time: 24 hours
Weight: ≤20kg
Power Consumption: ≤30W
Power Supply: 220V AC
Startup Time: ≤5 minutes
Operating Temperature: -40°C to +70°C
Explosion Protection Level: ExdICT6
Protection Level: IP66
